EMC VNX5700

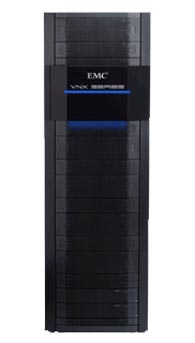

Used EMC VNX5700 Disk Array

Efficiently manage storage on VNXe, VNX, CLARiiON, Celerra, and EMC RecoverPoint SE systems with the used EMC VNX 5700. Developed specifically for virtual applications, this storage solution offers a simplified infrastructure and highly-optimized speed. Using state-of-the-art Flash technology, the used EMC VNX 5700 improves performance without negatively impacting speed.

Management Platform

Though it comes equipped with cutting-edge hardware, EMC’s VNX 5700 is simple to use. Manage all of your file and block data services on one platform – cutting your capacity requirements in half.

Virtual Application Optimization

The used EMC VNX 5700 lets you work faster – whether you’re using VMware, Microsoft Hyper-V integration, virtualized SQL, or Oracle. In under eight minutes, boot up to 1,000 virtual desktops while you triple the speed of some of your essential virtual programs.

Increased Performance

The EMC VNX 5700’s all Flash array drives improve system-wide performance. See the difference in your virtual storage pool and extendable cache when you use Flash drives.

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra is your global source for used and refurbished EMC storage systems!

VNX Specifications
Min/Max Drives	4/500
Array Enclosure	2U Storage Processor Enclosure (No Drives)
Drive Enclosure Options (DAE)	25×2.5″ SAS/Flash Drives-2 U 15×3.5″ SAS/Flash Drives-3 U 60×3.5″ SAS/Flash Drives-4U
Raid Options	0/1/10/3/5/6
CPU/Memory per Array	Intel Xeon 5600/36 GB
Max Block Ultraflex IO Modules per Array	10
Embedded IO Ports per Array	0
Max Total Ports per Array	24
2/4/8 Gb/s FC Maxc Prots per Array	24
File X-Blades	2-4
Control Stations	1-2 x 1u Server
X-Blade: CPU/Memory	Intel Xeon 5600 /12 GB
Functional Limits
Max Raw Capacity	1485 TB
Max SAN Hosts	4096
Max Number of LUNs	4096
Max LUN Size	16 TB (Virtual Pool LUN)
VNX Connectivity
The VNX series provides flexible connectivity options via Ultraflex IO modules for both the file x-blades for NAS connectivity and the block storage processor for FC and iSCSI host connectivity.
Ultraflex IO Module Options (Block)
For-Port Fibre Channel Module	FC Module with four ports auto-negotiating to 2/4/8 Gbps; uses optical SFP and OM2/OM3 cabling to connect directly to host HBA or FC switch
Four-Port 1 Gb/s ISCSI Module with TOE	iSCSI module with four 1 GBaseT RJ-45 copper connections to Cat 6 cabling to Ethernet switch; includes TCP offload engine
Two-Port 10 Gb/s Opt iSCSI Module with TOE	iSCSI module with two 10 Gb/s Ethernet ports and choice of SFP+ optical connection or active twinax copper connection to Ethernet switch; includes TCP offload engine
Two-Port 10 GBaseT iSCSI Module with TOE	iSCSI module with two 10 GBaseT Ethernet ports with copper connection to Ethernet switch; includes TCP offload engine
Two-Port 10 GbE FCoE Module	FCoE module with two 10 Gb/s Ethernet ports and choice of SFP+ optical connection or active twinax copper connection to converged enhanced Ethernet switch
Ultraflex IO Module Options (File)
Four-Port 1 GBaseT IP Module	10/100/1000 BaseT module with four ports supporting RJ-45 copper connections to Cat 6 cablin to Ethernet switch
Four-Port 1 GBaseT and 1 GbE Opt IP Module	IP module with two ports of 10/100/1000 BaseT and two ports 1 GbE optical
Two-Port 10 GbE Opt IP Module	IP module with two 10 Gb/s Ethernet ports and choice of SFB+ optical connection or active twinax copper connection to Ethernet switch
Two-Port 10 GBaseT IP Module	IP module with two 10 GBaseT Ethernet ports with copper connection to Ethernet switch
Four-Port 8 Gb/s Fibre Channel Module	FC module with four ports auto-negotiating to 2/4/8 Gbps; uses optical SFP and OM2/OM3 cabling to connect directly to captive array and to provide NDMP tape connection
Supported Disk Drives:
	100 GB SSD
	200 Gb SSD
	300GB 10k SAS
	300GB 15k SAS
	600GB 10k SAS
	600GB 15k SAS
	900GB 10k SAS
	1TB NL SAS 7.2K
	2TB NL SAS 7.2K
	3TB NL SAS 7.2K

Guarantee

All Spectra provided EMC storage products are put through a rigorous refurbishment, reconditioning and testing process.

We guarantee our products to be:

• Original equipment manufactured and serial numbered numbered by EMC
• Configured to exact user specifications
• Fully refurbished to manufacturers standards of new [ETN]
• All hard drives are 72 hour burn in/Load Tested
• Complete with manufacturers ship group
• Provided with 90 day warranty
• Shipped in a timely manner
