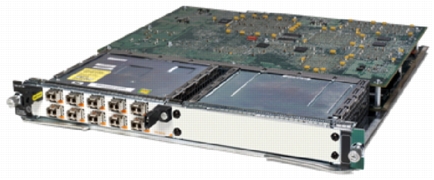

Cisco 7600 Series/ Catalyst 6500 Series SPA Interface Processor 600

Cisco 7600 Series/ Catalyst 6500 Series SPA Interface Processor 600

The Cisco 7600 Series SPA Interface Processor-600 has modular port adapters and programmable interface processors, which are interchangeable across Cisco routing platforms, protect network investments and reduce total cost of ownership (TCO). The Cisco I-Flex design maximizes connectivity options and offers superior service intelligence through programmable interface processors operating at line rate. This data sheet contains the specifications for the Cisco 7600 Series SPA Interface Processor-600

Ideal for both service provider and enterprise applications, the Cisco 7600 SIP 600) supports up to 10 Gbps of bandwidth and a wide range of interfaces; it provides the unique ability to combine both Layer 2 and Layer 3 services on the same line card. The combination of native Layer 2 bridging and Layer 3 routing distinguishes this line card among other products on the market, particularly in Metro Ethernet applications.

The innovative architecture of this industry-leading WAN services module is designed to deliver cost-effective high-touch features, combining both application-specific integrated circuit (ASIC) and network processor technology for an optimal combination of performance and flexibility. The Cisco 7600 SIP 600 provides distributed forwarding with proven ASIC technology in the forwarding path (routing and switching, NetFlow, access control lists [ACLs]) as well as for queuing and shaping functions to provide the maximum performance for these foundation features; additionally, a programmable network processor is included in the forwarding plane to facilitate flexibility and feature growth. This ideal technology combination provides customers with the necessary flexibility for future service deployments and allows them to scale the system capacity as required.

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra
is your global source for used and refurbished Cisco Routers and Switches!

Part Number	Product Description
7600-SIP-600	Cisco 7600 Series SPA Interface Processor-600
Specifications
Chassis Compatibility	All Cisco 7600 Series router and Cisco Catalyst® 6500 services switch chassis except the Cisco 7603
Central Forwarding Engine Compatibility	• Cisco Catalyst® 6500 Series supervisor engines 720-3B, 720-3BXL, and later • Requires switch fabric connectivity; therefore, the Cisco 7600 SIP 600 is not supported with Supervisor Engine 32
Distributed Forwarding Card (DFC)	• DFC-3BXL • Up to 24 Mpps, distributed forwarding • Up to one million hardware forwarding entries • Up to 256,000 NetFlow entries
Minimum Software Compatibility	Cisco IOS® Software Release 12.2(18)SXF or later Cisco IOS Software releases
Slot Configuration	One single- or double-height SPA per Cisco 7600 SIP 600 module
Memory	• Route memory: 1 GB • Packet memory: 256 MB (200 ms combined input/output buffering at 10 Gbps)
Supported SPAs	• Cisco 1-Port 10 Gigabit Ethernet Shared Port Adapter (pluggable IEEE LAN PHY XFP optics) • Cisco 10-Port Gigabit Ethernet Shared Port Adapter (SFP pluggable optics) • Cisco 5-Port Gigabit Ethernet Shared Port Adapter (SFP pluggable optics) • Cisco 1-Port OC-192/STM-64 POS Shared Port Adapter (XFP pluggable optics) • Cisco 1-Port OC-192/STM-64 POS Shared Port Adapter (long-reach fixed optics)
Link Encapsulations	• Ethernet II with optional IEEE 802.1q encapsulation • Packet over SONET/SDH (POS) with either Point-to-Point Protocol (PPP) or Cisco High-Level Data Link Control (HDLC) encapsulation
Hardware Queues	• 8000 queues (dynamically shared between ingress and egress processing) • Hierarchical Quality of Service (HQoS): Up to 1000 parent queues
MAC Addresses	MAC-learning in hardware, at wire speed
Environmental Conditions	• Operating temperature: 32 to 104°F (0 to 40°C) • Storage temperature: -40 to 167°F (-40 to 75°C) • Relative humidity: 10 to 90%, noncondensing • Operating altitude: · UL Approval: -60 to 2000m · Functionally Tested to 3000m
MIBs	• Cisco Entity MIB (CISCO-ENTITY-MIB) • Cisco Entity Asset MIB • Cisco Entity Field-Replaceable Unit (FRU) Control MIB • Cisco Entity Alarm MIB • Interface IF MIB (RFC 2233) • Definitions of Managed Objects for Bridges (RFC 1493) • Evolution of Interfaces Group of MIB-II (RFC 1573) • Simple Network Management Protocol (SNMP) MIB II (RFC 1213) • Remote Monitoring (RMON) MIB (RFC 1757) • Switch Monitoring (SMON) MIB
Network Management	• Supported with CiscoWorks-CiscoView, CiscoWorks Resource Manager Essentials (RME) • Integrated Solution Center (ISC)
Physical Specifications	• Occupies one slot in a Cisco 7600 or Cisco Catalyst 6500 Series Chassis • Up to eight Cisco 7600 SIP 600s in a 9-slot chassis • Requires Supervisor Engine 720-3B or 3BXL • Dimensions (H x W x D): 1.75 x 15.375 x 16 in. • Weight: 13 lb (without SPA)
Power	341W maximum power consumption per Cisco 7600 SIP 600 with one SPA
Indicators	Cisco 7600 SIP 600 module status: green (operational); orange (faulty)
Regulatory Compliance	CE marking
Safety	• UL 60950 • CSA C22.2 No. 60950 • EN60950 • TS001 • IEC 60950 • AS/NZS3260
Electromagnetic Compatibility (EMC)	• FCC Part 15 Class A • ICES-003 Class A • VCCI Class A • EN55022 Class A • CISPR22 Class A • AS/NZS3548 Class A • EN61000-3-2 • EN61000-3-3 • EN61000-3-1 • EN55024 • EN50082-1 • EN300 386 • FCC Part 15 Class A • ICES-003 Class A • VCCI Class A • EN55022 Class A • CISPR22 Class A • AS/NZS CISPR 22 Class A • EN61000-3-2 • EN61000-3-3 • EN61000-6-1 • EN55024 • EN50082-1 • EN300 386
Telecommunications Standards	• ITU-T G.691 • ITU-T G.707 • ITU-T G.783 Sections 9-10 • ITU-T G.784 • ITU-T G.803 • ITU-T G.813 • ITU-T G.825 • ITU-T G.826 • ITU-T G.841 • ITU-T G.957 Table 3 • ITU-T G.958
Network Protocols	• IPv4 Unicast and Multicast • IPv6 Unicast and Multicast • Multiprotocol Label Switching (MPLS) • Ethernet bridging
QoS	Modular QoS CLI (MQC)
Congestion Avoidance	Weighted Random Early Detection (WRED) based on IP Precedence, differentiated services code point (DSCP), MPLS experimental bit (EXP)
Queuing and Shaping	• Egress Class-Based Weighted Fair Queuing (CBWFQ) • Egress Low-Latency Queuing (LLQ) • Two levels of queuing hierarchy • Egress shaping
Traffic Classification and Bandwidth Policing	• Classification based on: · Extended ACL · IP Precedence and IP DSCP · MPLS EXP · VLAN · Input VLAN • Policer ingress single and dual rate, three color
ACLs and Security	• Up to 32,000 access-list entries with no forwarding degradation • Hardware counters for ACL hits
Layer 2 and Layer 3 VPNs	• Layer 2 VPNs · Ethernet over MPLS with MAC learning · Virtual private LAN service (VPLS) (MPLS edge or dot1q edge) • Layer 3 VPNs · MPLS VPN (RFC 2547-bis) · Inter-AS and CsC · Multicast VPN
Link Protection and Link Bundling	• SONET automatic protection switching (APS) (1 + 1, revertive and nonrevertive) • MPLS Fast Reroute • EtherChannel®
