Cisco 7600 Series 4-port Gigabit Ethernet WAN + LAN OSM

Cisco 7600 Series 4-port Gigabit Ethernet WAN + LAN OSM

Cisco 7600 Series Enhanced 4-port Gigabit Ethernet OSM

The growth of the packet networking and value-added applications has led to the need for the next-generation of capacity and service scaling in service provider networks. Gigabit Ethernet has emerged as a crucial technology at the network edge and access for enabling high-speed, cost-effective network connectivity to power Layer 2 or Layer 3 service offerings. In addition to the scalable bandwidth provided by Gigabit Ethernet, the service provider’s next-generation network also needs to deliver sophisticated packet services that enable and enforce tiered levels of provisioned bandwidth to meet the needs of a diverse customer base. The ability to deliver either Layer 2 or Layer 3 end-user services provisioned with features such as quality of service (QoS), traffic shaping, and traffic accounting have become critical requirements that must be integrated with high-speed Gigabit Ethernet connectivity to deliver the network capabilities necessary to ensure service provider success.

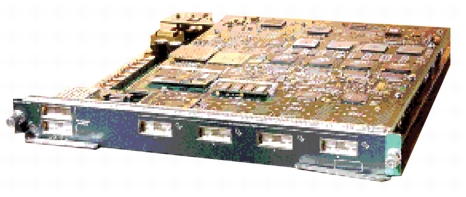

To meet these requirements, Cisco System offers the Enhanced Gigabit Ethernet Optical Services Module (OSM) for the Cisco 7600 Series Internet Router (Figure 1). This module allows service providers to offer a wide range of end-user services based on IP, Multiprotocol Label Switching (MPLS), and Ethernet over MPLS (EoMPLS) technologies over high-performance Gigabit Ethernet interfaces

Service providers can deploy the Cisco Enhanced Gigabit Ethernet OSM in a variety of network architectures and configurations. Furthermore, the Enhanced Gigabit Ethernet OSM supports the delivery of versatile end-user services with the ability to scale this service delivery to thousands of individual customers. As a result, the Enhanced Gigabit Ethernet OSM is uniquely capable of delivering a broad range of end-user services provisioned with QoS, security, and traffic-shaping features offered on a per-customer basis.

ENHANCED OPTICAL SERVICE MODULES
The Enhanced Gigabit Ethernet OSM interface card is a member of the new family of Enhanced OSMs for the Cisco 7600 Series. This family of interface cards supports all features of the original Cisco 7600 Series OSM interface cards, but takes the Cisco 7600 Series platform to a higher level of performance and functionality.

QOS FEATURES
The Enhanced Gigabit Ethernet OSM is unique in its ability to deliver Gigabit Ethernet performance combined with per-end-customer traffic shaping and QoS, with as many as 8000 separately provisioned traffic queues. These QoS features can be combined with the various end-user services the Cisco 7600 Series supports, including IP routing, MPLS IP VPN, and Ethernet over MPLS (IETF Martini Draft). By combining these QoS features with the end-user services supported by the Cisco 7600 Series, the Enhanced Gigabit Ethernet OSM provides the service provider with unparalleled flexibility to deliver an equally unparalleled range of end-user service definitions.

ABOUT THE CISCO 7600 PLATFORM
The Cisco 7600 Series is the industry’s only edge router that delivers robust, high performance features for a range of service provider edge and enterprise MAN/WAN applications. Coupled with the broadest set of interfaces and innovative adaptive network processing technology, the Cisco 7600 leads the industry with integrated Ethernet and private line aggregation capabilities. This unique combination enables carriers and enterprises alike to improve operational efficiency at the network edge while maximizing return on investment.

Would you like to buy or sell new,
used or refurbished Cisco 7600 Series Enhanced 4-port Gigabit Ethernet OSMs?

Since 1982 SPECTRA is your global source
for used, new and refurbished Cisco Switches and routers
specializing in Cisco 7600 Series Enhanced 4-port Gigabit Ethernet OSMs.

All SPECTRA
Cisco equipment is put through a rigorous refurbishment /
reconditioning and testing process and guaranteed:

• Original equipment manufactured and serial numbered by Cisco
• Configured to exact User specifications
• Fully refurbished / reconditioned to manufacturers standards of new
  [ETN]
• Lab tested, 72 Hour burn in/Load Tested
• Complete with manufacturers ship group (I/F Cables, Power Cords,
  Manuals etc)
• Eligible for Cisco Maintenance Agreement
• Provided with 90 Day warranty

Select the specific Cisco products you require from the menu on the left.

If you can’t find the Cisco equipment you need, please call us at
(714) 970-7700 to determine current availability. For quickest response,
please complete the buy/sell form on the right.

Part Number	Product Description
OSM-2+4GE-WAN+	2+4-port Enhanced Gigabit Ethernet Optical Services Module
OSM-2+4GE-5PACK+	5 pack of 2+4-port Enhanced Gigabit Ethernet Optical Services Module
Specifications
Gigabit Ethernet Specifications	• 802.3z and 802.3x compliant • GBIC-based Gigabit Ethernet interfaces with SC connectors: – 1000BASE-SX – 1000BASE-LX/LH – 1000BASE-ZX • Support for 802.1Q VLAN trunking • Support for Hot Standby Routing Protocol (HSRP) • Support for autonegotiation flow control • Support for 220 ms of packet buffering per port • Support for jumbo frames with an MTU of 9192 bytes • Support for up to 32,000 MAC addresses per port • Support for up to 32,000 simultaneous access control list (ACL) entries • Support for Simple Network Management Protocol (SNMP) I and II and four remote monitoring (RMON) groups per port: statistics, history, alarms, and events • Support for online insertion and removal (OIR)
Cisco 7600 Series Performance Features	• Hardware-based Cisco Express Forwarding scaling from 30 Mpps to more than 100 Mpps • ACL application, with as many as 15,000 ACL rules, at 30 Mpps • QoS classification at 30 Mpps • Policy routing at 30 Mpps • Support for 128,000 traffic accounting entries per system • Support for OIR • Support for SNMP I and II and four RMON groups per port: statistics, history, alarms, and events
Physical Specifications	• Occupies one slot in the Cisco 7600 Series platform • Occupies one slot in the Cisco Catalyst 6500 Series platform • Four IP service-enabled Gigabit Ethernet optical ports per optical service module • Up to eight Enhanced Gigabit Ethernet OSMs supported in a nine-slot Cisco 7600 Series chassis • Required with either Cisco 7600 Series or Catalyst 6500 Series chassis: – Supervisor Engine 2: WS-X6K-S2-MFSC2 • Recommended with either Cisco 7600 Series or Cisco Catalyst 6500 Series chassis: – Switch Fabric Module-256 Gbps Crossbar Fabric: WS-C6500-SFM • Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm) • Weight: 10.4 lb or 4.7 kg • Mean time between failure (MTBF): seven years for system configuration • Power consumption: 359 watts at 4.35 amps
Indicators and Interfaces	• Status: green (operational), red (faulty), orange (module booting or running diagnostics) • Link good: green (port active), orange (disabled), off (not active or not connected), blinking orange (failed diagnostic and disabled)
Processors and Memory	One 300-MHz R7000 MIPS RISC processor • Configurable packet/Route table memory options: – 128 MB ECC SDRAM (default) – 128 MB ECC SDRAM – 256 MB ECC SDRAM – 512 MB ECC SDRAM (future option) Two PXF IP service processors • Provides up to 12 Mpps of distributed IP service application per line card • Nonconfigurable PXF memory per line card: – 256-MB SDRAM of packet buffer memory (CRC checks per packet) – 264-MB SSRAM of packet processing memory
Management Information Base (MIB) Support	• ETHERLIKE-MIB (RFC 1643) • IF-MIB (RFC 1573) • Bridge MIB (RFC 1493) • CISCO-STACK-MIB • CISCO-VTP-MIB • CISCO-CDP-MIB • RMON MIB (RFC 1757) • CISCO-PAGP-MIB • CISCO-VLAN-BRIDGE-MIB • CISCO-VLAN-MEMBERSHIP-MIB • ENTITY-MIB (RFC 2037) • HC-RMON • RFC1213-MIB (MIB-II) • SMON-MIB
Maximum Station-to-Station Cabling Distance	• 1000BASE-SX: 62.5 um multimode fiber: up to 275 m • 1000BASE-SX: 50 um multimode fiber: up to 550 m • 1000BASE-LX: 62.5 um multimode fiber: up to 550 m • 1000BASE-LX: 50 um multimode fiber: up to 550 m • 1000BASE-LX: 9/10 um single-mode fiber: up to 5 km • 1000BASE-LH: 62.5 um multimode fiber: up to 550 m • 1000BASE-LH: 50 um multimode fiber: up to 550 m • 1000BASE-LH: 9/10 um single-mode fiber: up to 10 km • 1000BASE-ZX: 9/10 um single-mode fiber: up to 70 km • 1000BASE-ZX: dispersion-shifted fiber: up to 100 km
Environmental Conditions	• Operating temperature: 32 to 104°F (0 to 40°C) • Storage temperature: -40 to 167°F (-40 to 75°C) • Relative humidity: 10 to 90 percent, noncondensing • Operating altitude: -60 to 2000 m
REGULATORY COMPLIANCE	Safety Compliance • UL1950 with UL 60950 • CSA C22.2 No. 60950 • EN60950 • IEC 60950 • TS 001 • CE marking • AS/NZS 3260 EMC Compliance • FCC Part 15 (CFR 47) Class A • VCCI Class A • EN55022 Class A • CISPR 22 Class A • CE marking • AS/NZS 3548 Class A • EN55024 • EN 300 386-2 • ICES 003 Class A • EN50082-1 • EN61000-6-1 NEBS Level 3 Compliance The Cisco 7600 Series Internet routers are NEBS Level 3 compliant according to the following specifications: • GR-63-CORE – NEBS: Physical Protection • GR-1089-CORE – NEBS: EMC and Safety ETSI Compliance • ETS-300019 1-1 Class 1.1 • ETS-300019 1-2 Class 2.3 • ETS-300019 1-3 Class 3.1 Minimum Software Revision • Cisco IOS® Software Version 12.1(13)E3
