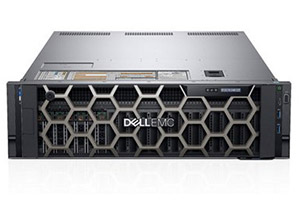

Dell EMC PowerEdge R940 Server

Used Dell EMC PowerEdge R940 Server

The PowerEdge R940 is designed to power your mission-critical applications and real-time decisions. With four sockets and up to 12 NMVe drives, the R940 provides scalable performance in just 3U.

The scalable business architecture of the Dell EMC PowerEdge R940 can deliver the most mission critical workloads. With automatic workload tuning for many workloads, configuration is quick. Combined with up to 6TB of memory and 13 PCIe Gen 3 slots the R940 has all the resources to maximize application performance and scale for future demands.

Key Features

• Maximize storage performance with up to 12 NVMe drives and ensure application performance scales easily
• Optimized for software defined storage with a special 2-socket configuration delivering 50% more UPI bandwidth compared to a regular 2-socket server.
• Free up storage space using internal M.2 SSDs optimized for boot.
• Eliminate bottlenecks with up to 6TB of memory in 48 DIMMS, 12 of which can be NVDIMMs.

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra is your global source for used and refurbished Dell EMC Server systems.

Processor
Up to four Intel® Xeon® SP, up to 28 cores
Memory
48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2666MT/s, 6TB max Up to 12 NVDIMM, 192 GB Max Supports registered ECC DDR4 DIMMs only
Storage
Storage Controllers	Internal controllers: PERC S140, H330, H740P Boot optimized Storage Subsystem External HBAs (RAID): H840 External HBAs (non-RAID): 12 Gbps SAS HBA
Drive Bays	Front drive bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD) with up to 12 NVMe PCIe SSD, max 122TB
I/O
Network daughter card options 4x 1Gb, 4x 10Gb, 2x 10Gb+2x 1Gb, or 2x 25Gb Front ports: Video, 2 x USB 3.0, dedicated IDRAC Direct USB Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port Video card: VGA Up to 13 x Gen3 slots, (3 x8 + 10 x16)
Deployment
Form Factor	Rack (3U)
OS Support	Canonical® Ubuntu® LTS Citrix® XenServer® Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi

Guarantee

All Spectra provided Dell server products are put through a rigorous refurbishment, reconditioning and testing process.
We guarantee our products to be:

• Original equipment manufactured and serial numbered numbered by Dell
• Configured to exact user specifications
• Fully refurbished to manufacturers standards of new [ETN]
• All hard drives are 72 hour burn in/Load Tested
• Complete with manufacturers ship group
• Provided with 90 day warranty
• Shipped in a timely manner
