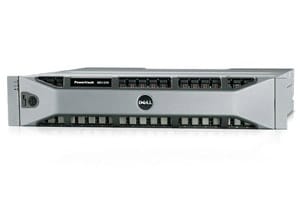

Dell PowerVault MD1220 Direct Attached Storage

Dell PowerVault MD1220 Direct Attached Storage

The Dell PowerVault MD1220 direct-attached storage (DAS) enclosure is the second generation of Dell’s energy-efficient, small-form-factor (SFF), 2.5-inch drive expansion enclosure. The PowerVault MD1220 offers seamless expansion for Dell PowerEdge servers and various Dell Storage arrays, providing IOPs needed to satisfy performance-intensive application. This expansion array can support 24, 2.5-inch SAS hard-disk drives (HDDs) or solid-state drives (SSDs)* in a 2U array and expands up to 8 arrays per adapter, so you don’t have to trade capacity for performance.

The PowerVault MD1220 leverages SAS 2.0 technology, which enables double the throughput over previous generation, with a 6Gb/s SAS interface and offers performance optimization with automatic I/O load balancing across redundant paths and enhanced security, over previous generation with new self-encrypting drive (SED) support.

Key Features:

• 6Gb/s SAS: With improved throughput from the last-generation, the PowerVault MD1220 can satisfy even the most performance-intensive applications, such as Web hosting, database and e-mail.
• Solid State Drives: Pair the increased IOPs and throughput of 6Gb/s SAS with support for solid state drives (SSD), an ideal solution for applications that rely on random block access.
• Automatic I/O Load Balancing: Further optimizing the performance of the PowerVault MD1220, the PERC H810 Host-RAID adapter has automatic I/O balancing between the server and storage array. The PERC H810 can detect when a single path starts to get saturated and then balance the I/O traffic across both paths.
• The PowerVault MD1220 can deliver the speed, performance and reliability to satisfy performance intensive single server applications that store active and frequently changing information.

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra is your global source for used and refurbished Dell storage systems!

Number of drives/form factor:	Up to twenty-four (24) 2.5-inch hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K, 15K rpm and SAS Solid State Drives (SSDs).
Expansion Capability:	PERC H810 enables expansion to 8 enclosures, 4 per port
RAID levels:	PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50 and 60. See PERC H800 server compatability matrix for a list of currently supported servers
Maximum Capacity (per enclosure):	Up to 48TB when using 24 x 2TB NL-SAS 2.5″ HDDs

Guarantee

All Spectra provided Dell storage products are put through a rigorous refurbishment, reconditioning and testing process.

We guarantee our products to be:

• Original equipment manufactured and serial numbered numbered by Dell
• Configured to exact user specifications
• Fully refurbished to manufacturers standards of new [ETN]
• All hard drives are 72 hour burn in/Load Tested
• Complete with manufacturers ship group
• Provided with 90 day warranty
• Shipped in a timely manner

Shipping Information and Payment Options

Shipping options:

All of our products are professionally packed and fully insured to avoid any damage in transit.

Spectra offers several shipping options to accommodate every need:
From Ground to Overnite to palatalized freight, we have excellent vendors that will handle your shipment in a professional, cost-effective and timely manner.

Payment Options:

Spectra accepts bank wire, ACH, company check, & PayPal.
We welcome ALL major credit cards with no surcharge to our customers.
