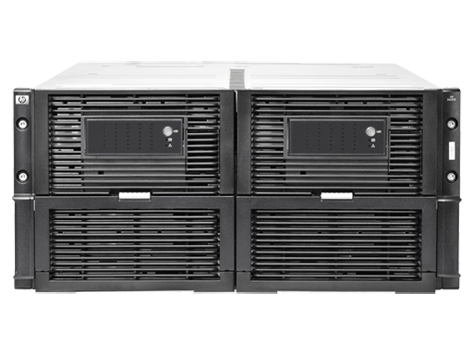

HP D6000 w/35 2TB 6G SAS 7.2K Dual port MDL HDD

HP D6000 w/35 2TB 6G SAS 7.2K Dual port MDL HDD

Finding it difficult to keep up with the growth in unstructured data? Looking for a cost-effective high capacity storage option? With the 6 Gb/s SAS HP D6000 QQ697A Blade Storage, HP extends and redefines direct-attached storage for BladeSystem servers, combining the simplicity and cost effectiveness of direct-attached storage without sacrificing flexibility or performance. Use the D6000 as part of a straight-forward in-rack 6 Gb/s SAS implementation that delivers high-density, low-cost external zoned direct attach storage for HP BladeSystem servers. Easily configure storage on the fly with easy to use management software.

High-density, Low-cost External SAS Storage for BladeSystem Servers

• The 6 Gb/s SAS D6000 is designed with two pull-out disk drawers to support hot plug large form factor SAS or SAS MDL drives in just 5U of rack space for customers requiring dense storage option with lowest acquisition cost that optimizes cost per U
• The simplicity of an in-rack storage solution eliminates expense and complexity from the storage architecture; just a Smart Array P721m Controller in the blade server, 6 Gb/s SAS BL switches in the blade enclosure connected to up to six D6000
• Supports up to six D6000 from a single BladeSystem enclosure providing up to 1260 TB of in-rack storage for customers requiring high-density, low-cost storage

Build Local Storage on the fly for BladeSystem Servers

• Use the management software of the 6 Gb/s SAS BL switch to group D6000 drives and assign them to individual blade servers. These drives now appear as local storage to that server
• With D6000 zoned direct attach capabilities server administrators can build local storage on the fly according to their configuration requirements
• Just add additional drives to the D6000 and zone to a newly deployed blade server, or add capacity to the zone of an existing blade server configuration. No need for complex configuration or rewiring

High Performance 6 Gb/s SAS Connectivity to External Storage

• 6 Gb/s host connectivity enables higher performance, eases configuration/deployment and broadens supported features of an D6000 using HP Smart Array P721m controller and 6 Gb/s SAS BL switches
• With the D6000, applications and storage are installed in the same rack. Latency is reduced as data does not travel over large distances
• A Smart Array P721m Controller installed in the blade server provides 2GB flash-backed write cache (FBWC)

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra
is your global source for used and refurbished HP Storage systems!

Technical specifications
Capacity	TB None included
Drive description	(70) LFF MDL SAS Supported
Drive type	600 GB 6G 15K LFF Dual-port SAS 450 GB 6G 15K LFF Dual-port SAS 300 GB 6G 15K LFF Dual-port SAS 3 TB 6G 7.2K LFF Dual-port MDL SAS 2 TB 6G 7.2K LFF Dual-port MDL SAS 1 TB 6G 7.2K LFF Dual-port MDL SAS (70) Supported None included
Host interface	6 Gb/sec SAS
Storage controller	(4) Smart Array P721m/2GB FBWC; Supported
Storage expansion options	Up to six See QuickSpecs for detailed information
SAN backup support	No
Storage mirroring support	No
Systems Insight Manager support	Yes
Compatible operating systems	Windows Server 2003 Microsoft Windows Server 2008 R2 Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware ESX Depending on host connectivity
Form factor	5U
Dimensions and weight
Minimum dimensions (W x D x H)	19 x 36.88 x 8.63 in
Weight	145 lb

Guarantee

All Spectra
provided HP Storage products are put through a rigorous refurbishment, reconditioning and testing process.
We guarantee our products to be:

• Original equipment manufactured and serial numbered numbered by HP
• Configured to exact user specifications
• Fully refurbished to manufacturers standards of new [ETN]
• All hard drives are 72 hour burn in/Load Tested
• Complete with manufacturers ship group
• Provided with 90 day warranty
• Shipped in a timely manner

Shipping Information and Payment Options

Shipping options:

All of our products are professionally packed and fully insured to avoid any damage in transit.

Spectra offers several shipping options to accommodate every need:
From Ground to Overnite to palletized freight, we have excellent vendors that will handle your shipment in a professional, cost-effective and timely manner.

Payment Options:

Spectra accepts bank wire, ACH, company check, & paypal.
We welcome ALL major credit cards with no surcharge to our customers.
