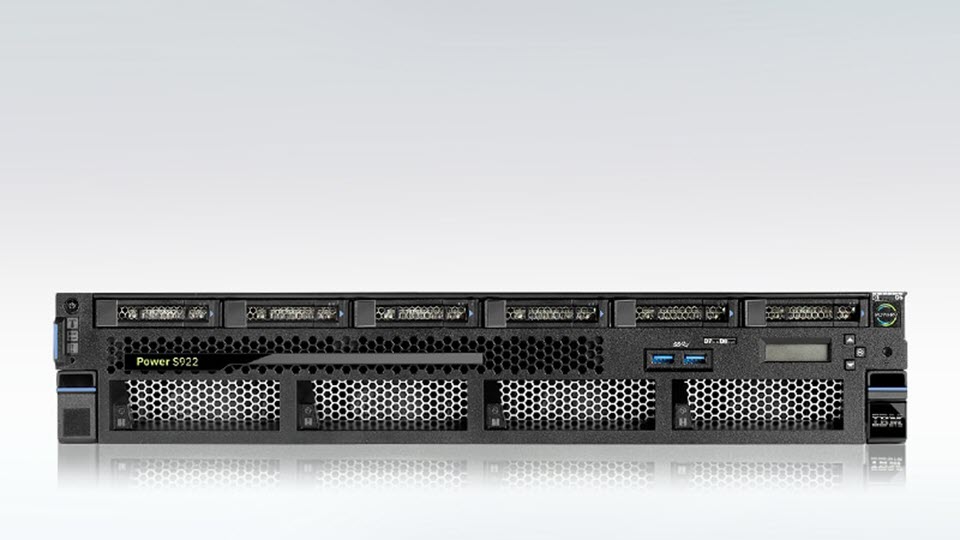

IBM Power S922 Servers

Used IBM® Power System S922

IBM® Power System S922 provides performance, virtualization, reliability and availability to help enrich and expedite your social and mobile solutions in IBM AIX®, IBM i and Linux environments. Combine multiple applications and infrastructure workloads in a virtualized environment to bring more information and capability to social and mobile applications—and bring them to users faster. Based on IBM POWER9™, S922 delivers twice the throughput of Intel-based offerings and superior economics for scale-out deployments. It also makes an ideal foundation for cloud infrastructure to help propel your cloud and cognitive strategy.

With new innovations, Power9 Systems provide the ability to:

• Gain insights faster
• Get superior price/performance
• Connect to cognitive capabilities
• Deploy, optimize, recover workloads fast
• Migrate quickly and simply
• Stay available and secure

Specifications

System configurations	Model 9009-22A
Processor and Memory
Microprocessors	4-core Typical 2.8 to 3.8 GHz (max) POWER9 Processor 8-core Typical 3.4 to 3.9 Ghz (max) POWER9 Processor 10-core Typical 2.9 to 3.8 Ghz (max) POWER9 Processor
Memory	Up to 4096 GB of DDR4 memory
Storage and I/O
Storage Backplane Options	Base Storage Backplane 8 SFF-3 Bays Split feature to 4+4 SFF-3 Bays: Add a second SAS Controller Expanded Function Storage Backplane 8 SFF-3 Bays/Single IOA with Write Cache
Internal Disk Storage	SFF bays, one integrated SAS controller without cache, and JBOD RAID 0, 5, 6, or 10 ●Optionally, split the above SFF-3 bays and add a second integrated SAS controller without cache. ●Expanded Function Storage Backplane 8 SFF-3 Bays/Single IOA with Write Cache. ●Optionally, attach an EXP12SX/EXP24SX SAS HDD/SSD Expansion Drawer to the single IOA.
Adapter slots	●PCIe slots with single processor: – One x16 Gen4 low-profile, half-length slot (CAPI) – One x8 Gen4 low-profile, half-length slot (with x16 connector) (CAPI) – Two x8 Gen3 low-profile, half-length slots (with x16 connectors) – Two x8 Gen3 low-profile, half-length slots (one of these slots is used for the required base LAN adapter) ●PCIe slots with two processors: – Three x16 Gen4 low-profile, half-length slots (CAPI) – Two x8 Gen4 low-profile, half-length slots (with x16 connectors) (CAPI) – Two x8 Gen3 low-profile, half-length slots (with x16 connectors) – Two x8 Gen3 low-profile, half-length slots (one of these slots is used for the required base LAN adapter)
Connectivity, System Software, RAS features
Connectivity support (optional) I/O ports Standard features	One front USB 3.0 ports Two rear USB 3.0 ports Two HMC 1 GbE RJ45 ports One system port with RJ45 connector 1x USB 3.0 front, 2x USB 3.0 rear, 2x HMC 1 GB Eth RJ45 ports, one system port with RJ45 connector, 2x High Speed 25 Gb/s ports
RAS features	Processor instruction retry Selective dynamic firmware updates Chip kill memory ECC L2 cache, L3 cache Service processor with fault monitoring Hot-swappable disk bays Redundant cooling fans
Operating systems*	AIX 7.2 TL2 AIX 7.2 TL0, TL1 (P8 Compatibility Mode) AIX 7.1 TL4, TL5 (P8 Compatibility Mode) AIX 6.1 TL9 (P7 Compatibility Mode) IBM i 7.3 TR4 IBM i 7.2 TR8 Ubuntu 16.04.4 LTS (P8 Compatibility Mode) RedHat RHEL 7.4 LE (P8 Compatibility Mode) SuSE SLES 11 SP4 (P8 Compatibility Mode) SuSE SLES 12 SP3
