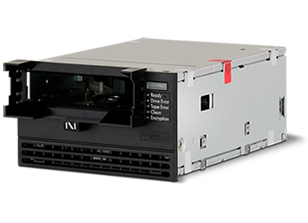

StorageTek LTO 5 Tape Drive

StorageTek LTO 5 Tape Drive

The StorageTek LTO 5 Tape Drive use fast data transfer rates and have large capacities so you can process more data in much less time. The Fibre Channel interface further enhances data movement which allows for shorter backup times, reduces downtime, and speeds up recovery. When you add StorageTek tape libraries you can manage, store and protect your growing data needs in a cost effective manor.

The StorageTek LTO 5 Tape Drive use SAS or FC interfaces. It comes in full and half height platforms to match your specific requirements. It can also be used as a single drive or added to an automation environment. StorageTek LTO 5 Tape Drives support tow generation backwards compatibility so you can make the most of your technology needs. It is also compatible will all leading edge backup and management software and hardware platforms. This makes cost of ownership low. The StorageTek LTO 5 is a robust mid-level tape drive

For quickest response, please complete the buy/sell form at the top of the page.

Since 1982, Spectra is your global source for used and refurbished StorageTek Storage Devices!

Specifications
	StorageTek LTO 5 Half-Height	StorageTek LTO 5 Full-Height
Tape load and thread to ready	19 sec	19 sec
Average file access time (first file)	52 sec	52 sec
Maximum/average rewind time	96/48 sec	96/48 sec
Unload time (RW cartridge)	19 sec	19 sec
Unload time (WORM cartridge)	23 sec	22 sec
Capacity, native (uncompressed)	1.5 TB	1.5 TB
Capacity, native (compressed)	3.0 TB (2:1)	3.0 TB (2:1)
Mean time between failures (MTBF) Power on	250,000 hrs @ 100% duty cycle	250,000 hrs @ 100% duty cycle
Head life	60,000 hrs	60,000 hrs
Uncorrected bit error rate	1×10-17	1×10-17
Undetected bit error rate	1×10-27	1×10-27
Interface (SAS)	6 Gb SAS	6 Gb SAS
Burst transfer rate	600 MB/sec	600 MB/sec
Interface (Fibre Channel – automation only)	8 Gb FC	8 Gb FC
Read/write compatibility interface	LTO 5, LTO 4 read/write, LTO 3 (read only)	LTO 5, LTO 4 read/write, LTO 3 (read only)
Emulation modes	LTO 5	LTO 5
Desktop dimensions (W x H x D)	8.86 x 3.11 x 11.73 (in.), 22.50 x 7.90 x 29.79 (cm)	N/A
Desktop weight	17.6 lb., 8.0 kg	N/A
Rackmount dimensions (W x H x D)	19.0 x 1.75 x 25.25 (in.), 48.3 x 4.44 x 64.1 (cm)	N/A
Rackmount weight	21 lb., 9.52 kg	N/A
Automation dimensions (W x H x D)	5.7 x 1.6 x 8.1 (in.) 14.47 x 4.1 x 20.82 (cm)	5.7 x 3.3 x 8.2 (in.), 14.47 x 8.38 x 20.82 (cm)
Automation weight	3.2 lb., 1.45 kg	4.94 lb., 2.24 kg
Temperature: operating	+50°F to +100°F (+10°C to +38°C)	+50°F to +100°F (+10°C to +38°C)
Relative humidity: nonoperating	10% to 95%	10% to 95%
Desktop	100–240 V AC 50/60 Hz 0.7A max. Autoranging Power connection IEC 320	N/A
Rackmount	+5 V @ 3.5 A typical +12 V @ 1.0 A typical +5 V @ 4.5 A (max.) +12 V @ 2.0 A (max.)	N/A
Automation	Varies depending on library configuration	Varies depending on library configuration

Guarantee

All Spectra provided Hitachi Storage Devices are put through a rigorous refurbishment, reconditioning and testing process.

We guarantee our products to be:

• Original equipment manufactured and serial numbered numbered by StorageTek
• Configured to exact user specifications
• Fully refurbished to manufacturers standards of new [ETN]
• All hard drives are 72 hour burn in/Load Tested
• Complete with manufacturers ship group
• Provided with 90 day warranty
• Shipped in a timely manner
