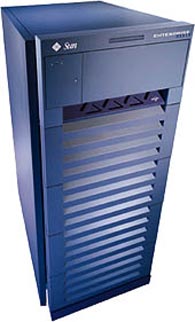

Enterprise 6500 Used, Refurbished

System Boards
Number of boards Maximum of sixteen boards per system; minimum configuration
requires one CPU/Memory board and one I/O board
CPU/Memory board Holds up to two processors and 16 memory DIMMs
SBus I/O board Offers two SBus channels, three SBus slots, SunFastEthernet,
Fast/Wide SCSI-2, two FC-AL sockets
Graphics I/O board Offers one SBus channel, two SBus slots, one UPA slot for
Creator3D graphics, SunFastEthernet, Fast/Wide SCSI-2, two FC-AL sockets
PCI I/O board Offers four PCI channels, two (short) PCI slots, SunFastEthernet,
Fast/Wide SCSI-2
Main Memory 1GB to 60-GB* memory capacity per system. Memory expansion options:
1-GB and 2-GB memory expansion options (each a group of 8 DIMMs)

*Sun Enterprise 6500 systems running Solaris Operating Environment 2.5.1 limited
to 56-GB memory capacity.

Standard Interfaces
Serial Two RS-232/423 ports on clock board
SBus 64-bit data bus width, 25 MHz
PCI 64-bit data bus width, 66 MHz
Keyboard and mouse port One each per system
Ethernet 10/100 MB/sec twisted pair standard
(10-BaseT and 100-BaseT) and/or MII transceiver per I/O board
SCSI On-board 20-MB/sec Fast/Wide SCSI-2 (synchronous) per I/O board
Fibre channel Two on-board sockets (100 MB/sec full duplex) per SBus and
Graphics I/O boards

Mass Storage and Media
Internal disk Up to two 36.4-GB disk boards, each with two SCSI disk drives.
More than 2-TB of storage can be rackmounted in the system cabinet.
Internal tape DLT, 8mm and 4mm tape options available
DVD-ROM DVD 10 drive standard (capable of reading CD-ROM media only)
External storage Supports 30-TB of storage

Console options
Monitor 17- to 24-in color monitors
Frame buffer SunFastEthernet, SunATM 155 and 622, Sun Quad FastEthernet,
Differential Fast/Wide Intelligent SCSI-2 (DWIS/S), Single-Ended Fast/Wide
Intelligent SCSI-2 (SWIS/S), High-Speed Serial Interface (HSI/S), Token Ring
Interface (TRI/S), Single- and Dual-Attach FDDI, Serial Parallel Controller (SPC/S),
100BaseT Fast/Wide SCSI, ISDN, Fast Differential SCSI-2 Buffered Ethernet (DSBE/S),
Fast SCSI-2 Buffered Ethernet (FSBE/S), Sun Gigabit Ethernet, FC-AL, Ultra
Differential Fast/Wide Intelligent SCSI
PCI options 10/100BaseT Fast/Wide UltraSCSI, 10/100BaseT FastEthernet, Quad
FastEthernet, Single- and Dual-Attach FDDI, Token Ring, High Speed Serial
Interface, Serial Asynchronous Interface, Gigabit Ethernet Network, SunATM 155
and 622, High Performance Interface Board (HIPPI/I)
Power Supplies One 184-watt Peripheral Power Supply standard. Up to eight hot
swappable 300-watt Power Cooling Modules (PCM) with redundant, dual-speed fans.
One PCM required per two systems boards. Fully-redundant power and cooling
available on this system.
Availability features Automatic System Recovery
Dynamic Reconfiguration
Alternate Pathing
CPU Power Control
Redundant Power and Cooling
Hot-swap Power/Cooling Modules
Hot-swap disk drives
Hardware Failure Prediction
Remote Power Control
Modular components

Software
Operating system Solaris Operating Environment 2.5.1 or later
Languages C, C++, Pascal, FORTRAN, Java
Networking ONC, NFS, TCP/IP, SunNet OSI, MHS, X.25, DCE, Netware
Windowing system CDE, OpenWindows Version 3 optional
System monitoring Sun Management Center
System and network management Solaris Resource Manager, Solaris Web Start,
Solstice AdminSuite, Solstice Domain Manager, Solstice Enterprise Manager,
Solstice DiskSuite, Solstice Backup, Veritas File System, VERITAS NetBackup,
VERITAS Volume Manager and more…

Environment
AC power 200-240 VAC, 47-63 Hz, 24A
Operating 5° C to 35° C (41° F to 95° F) 20% to 80% relative humidity,
noncondensing
Nonoperating -20° C to 60° C (-4° F to 140° F) 5% to 93% relative humidity,
noncondensing

Regulations
Meets or exceeds the following requirements:
Safety UL 1950, CSA 950, TUV EN60950, CB Scheme (Nordic Deviation)
RFI/EMI FCC Class A, DOC Class A, EN55022 Class A, VCCI Class 1
Immunity EN50082-1
Harmonics EN61000-3-2
